OK,到目前为止,我们的服务顺利容器化并上了K8s,同时也能通过外部网络进行请求访问,相关的服务数据也能进行持久化存储了,那么接下来很关键的事情,就是怎么去收集服务产生的日志进行数据分析及问题排查,怎么去监控服务的运行是否正常,下面会以生产中的经验来详细讲解这两大块。

日志收集

现在市面上大多数课程都是以EFK来作来K8s项目的日志解决方案,它包括三个组件:Elasticsearch, Fluentd(filebeat), Kibana;Elasticsearch 是日志存储和日志搜索引擎,Fluentd 负责把k8s集群的日志发送给 Elasticsearch, Kibana 则是可视化界面查看和检索存储在 Elasticsearch 的数据。

但根据生产中实际使用情况来看,它有以下弊端:

1、日志收集系统 EFK是在每个kubernetes的NODE节点以daemonset的形式启动一个fluentd的pod,来收集NODE节点上的日志,如容器日志(/var/log/containers/*.log),但里面无法作细分,想要的和不想要的都收集进来了,带来的后面就是磁盘IO压力会比较大,日志过滤麻烦。

2、无法收集对应POD里面的业务日志 上面第1点只能收集pod的stdout日志,但是pod内如有需要收集的业务日志,像pod内的/tmp/datalog/*.log,那EFK是无能为力的,只能是在pod内启动多个容器(filebeat)去收集容器内日志,但这又会带来的是pod多容器性能的损耗,这个接下来会详细讲到。

3、fluentd的采集速率性能较低,只能不到filebeat的1/10的性能。

基于此,我通过调研发现了阿里开源的智能容器采集工具 Log-Pilot,github地址:
https://github.com/AliyunContainerService/log-pilot

下面以sidecar 模式和log-pilot这两种方式的日志收集形式做个详细对比说明:

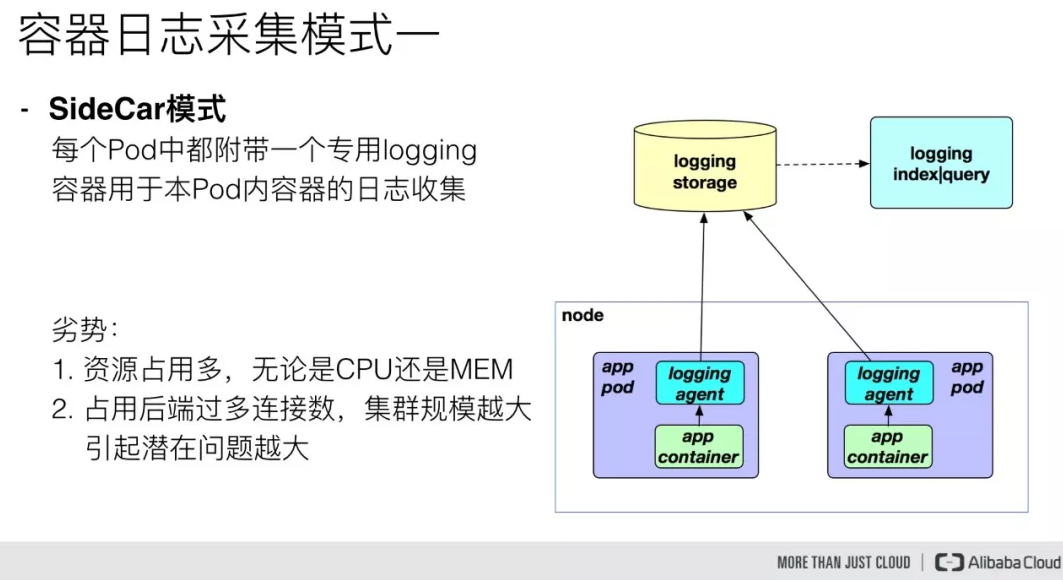

第一种模式是 sidecar 模式,这种需要我们在每个 Pod 中都附带一个 logging 容器来进行本 Pod 内部容器的日志采集,一般采用共享卷的方式,但是对于这一种模式来说,很明显的一个问题就是占用的资源比较多,尤其是在集群规模比较大的情况下,或者说单个节点上容器特别多的情况下,它会占用过多的系统资源,同时也对日志存储后端占用过多的连接数。当我们的集群规模越大,这种部署模式引发的潜在问题就越大。

第12关 k8s架构师课程之业务日志收集上节介绍、下节实战

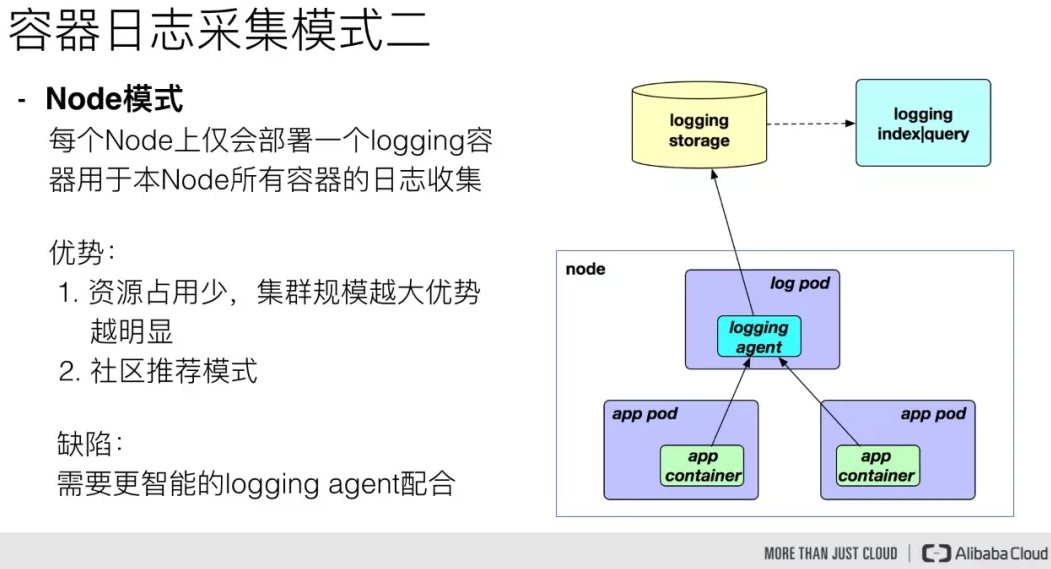

另一种模式是 Node 模式,这种模式是我们在每个 Node 节点上仅需部署一个 logging 容器来进行本 Node 所有容器的日志采集。这样跟前面的模式相比最明显的优势就是占用资源比较少,同样在集群规模比较大的情况下表现出的优势越明显,同时这也是社区推荐的一种模式。

第12关 k8s架构师课程之业务日志收集上节介绍、下节实战

经过多方面测试,log-pilot对现有业务pod侵入性很小,只需要在原有pod的内传入几行env环境变量,即可对此pod相关的日志进行收集,已经测试了后端接收的工具有logstash、elasticsearch、kafka、redis、file,均OK,下面开始部署整个日志收集环境。

我们这里用一个tomcat服务来模拟业务服务,用log-pilot分别收集它的stdout以及容器内的业务数据日志文件到指定后端存储(这里分别以elasticsearch、kafka的这两种企业常用的接收工具来做示例)

准备好相应的yaml配置

vim tomcat-test.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: tomcat
  name: tomcat
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tomcat
  template:
    metadata:
      labels:
        app: tomcat
    spec:
      tolerations:
      - key: "node-role.kubernetes.io/master"
        effect: "NoSchedule"
      containers:
      - name: tomcat
        image: "tomcat:7.0"
        env:      # 注意点一,添加相应的环境变量(下面收集了两块日志1、stdout 2、/usr/local/tomcat/logs/catalina.*.log)
        - name: aliyun_logs_tomcat-syslog   # 如日志发送到es,那index名称为 tomcat-syslog
          value: "stdout"
        - name: aliyun_logs_tomcat-access   # 如日志发送到es,那index名称为 tomcat-access
          value: "/usr/local/tomcat/logs/catalina.*.log"
        volumeMounts:   # 注意点二,对pod内要收集的业务日志目录需要进行共享,可以收集多个目录下的日志文件
          - name: tomcat-log
            mountPath: /usr/local/tomcat/logs
      volumes:
        - name: tomcat-log
          emptyDir: {}

vim elasticsearch.6.8.13-statefulset.yaml

apiVersion: apps/v1
kind: StatefulSet
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    k8s-app: elasticsearch-logging
    version: v6.8.13
  name: elasticsearch-logging
  # namespace: logging
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: elasticsearch-logging
      version: v6.8.13
  serviceName: elasticsearch-logging
  template:
    metadata:
      labels:
        k8s-app: elasticsearch-logging
        version: v6.8.13
    spec:
      containers:
      - env:
        - name: NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        - name: cluster.name
          value: elasticsearch-logging-0
        - name: ES_JAVA_OPTS
          value: "-Xms512m -Xmx512m"
        image: elastic/elasticsearch:6.8.13
        name: elasticsearch-logging
        ports:
        - containerPort: 9200
          name: db
          protocol: TCP
        - containerPort: 9300
          name: transport
          protocol: TCP
        volumeMounts:
        - mountPath: /usr/share/elasticsearch/data
          name: elasticsearch-logging
      dnsConfig:
        options:
        - name: single-request-reopen
      initContainers:
      - command:
        - /sbin/sysctl
        - -w
        - vm.max_map_count=262144
        image: alpine:3.12
        imagePullPolicy: IfNotPresent
        name: elasticsearch-logging-init
        resources: {}
        securityContext:
          privileged: true
      - name: fix-permissions
        image: alpine:3.12
        command: ["sh", "-c", "chown -R 1000:1000 /usr/share/elasticsearch/data"]
        securityContext:
          privileged: true
        volumeMounts:
        - name: elasticsearch-logging
          mountPath: /usr/share/elasticsearch/data
      volumes:
      - name: elasticsearch-logging
        hostPath:
          path: /esdata
---
apiVersion: v1
kind: Service
metadata:
  labels:
    k8s-app: elasticsearch-logging
  name: elasticsearch
  # namespace: logging
spec:
  ports:
  - port: 9200
    protocol: TCP
    targetPort: db
  selector:
    k8s-app: elasticsearch-logging
  type: ClusterIP

vim kibana.6.8.13.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kibana
  # namespace: logging
  labels:
    app: kibana
spec:
  selector:
    matchLabels:
      app: kibana
  template:
    metadata:
      labels:
        app: kibana
    spec:
      containers:
      - name: kibana
        image: elastic/kibana:6.8.13
        resources:
          limits:
            cpu: 1000m
          requests:
            cpu: 100m
        env:
          - name: ELASTICSEARCH_URL
            value: http://elasticsearch:9200
        ports:
        - containerPort: 5601
---
apiVersion: v1
kind: Service
metadata:
  name: kibana
  # namespace: logging
  labels:
    app: kibana
spec:
  ports:
  - port: 5601
    protocol: TCP
    targetPort: 5601
  type: ClusterIP
  selector:
    app: kibana
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: kibana
  # namespace: logging
spec:
  rules:
  - host: kibana.boge.com
    http:
      paths:
      - path: /
        backend:
          serviceName: kibana
          servicePort: 5601

vim log-pilot.yml # 后端输出的elasticsearch

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: log-pilot
  labels:
    app: log-pilot
  # 设置期望部署的namespace
#  namespace: ns-elastic
spec:
  selector:
    matchLabels:
      app: log-pilot
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: log-pilot
      annotations:
        scheduler.alpha.kubernetes.io/critical-pod: ''
    spec:
      # 是否允许部署到Master节点上
      #tolerations:
      #- key: node-role.kubernetes.io/master
      #  effect: NoSchedule
      containers:
      - name: log-pilot
        # 版本请参考https://github.com/AliyunContainerService/log-pilot/releases
        image: registry.cn-hangzhou.aliyuncs.com/acs/log-pilot:0.9.7-filebeat
        resources:
          limits:
            memory: 500Mi
          requests:
            cpu: 200m
            memory: 200Mi
        env:
          - name: "NODE_NAME"
            valueFrom:
              fieldRef:
                fieldPath: spec.nodeName
          ##--------------------------------
#          - name: "LOGGING_OUTPUT"
#            value: "logstash"
#          - name: "LOGSTASH_HOST"
#            value: "logstash-g1"
#          - name: "LOGSTASH_PORT"
#            value: "5044"
          ##--------------------------------
          - name: "LOGGING_OUTPUT"
            value: "elasticsearch"
          ## 请确保集群到ES网络可达
          - name: "ELASTICSEARCH_HOSTS"
            value: "elasticsearch:9200"
          ## 配置ES访问权限
          #- name: "ELASTICSEARCH_USER"
          #  value: "{es_username}"
          #- name: "ELASTICSEARCH_PASSWORD"
          #  value: "{es_password}"
          ##--------------------------------
          ## https://github.com/AliyunContainerService/log-pilot/blob/master/docs/filebeat/docs.md
          ## to file need configure 1
#          - name: LOGGING_OUTPUT
#            value: file
#          - name: FILE_PATH
#            value: /tmp
#          - name: FILE_NAME
#            value: filebeat.log
        volumeMounts:
        - name: sock
          mountPath: /var/run/docker.sock
        - name: root
          mountPath: /host
          readOnly: true
        - name: varlib
          mountPath: /var/lib/filebeat
        - name: varlog
          mountPath: /var/log/filebeat
        - name: localtime
          mountPath: /etc/localtime
          readOnly: true
         ## to file need configure 2
#        - mountPath: /tmp
#          name: mylog
        livenessProbe:
          failureThreshold: 3
          exec:
            command:
            - /pilot/healthz
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 2
        securityContext:
          capabilities:
            add:
            - SYS_ADMIN
      terminationGracePeriodSeconds: 30
      volumes:
      - name: sock
        hostPath:
          path: /var/run/docker.sock
      - name: root
        hostPath:
          path: /
      - name: varlib
        hostPath:
          path: /var/lib/filebeat
          type: DirectoryOrCreate
      - name: varlog
        hostPath:
          path: /var/log/filebeat
          type: DirectoryOrCreate
      - name: localtime
        hostPath:
          path: /etc/localtime
       ## to file need configure 3
#      - hostPath:
#          path: /tmp/mylog
#          type: ""
#        name: mylog

vim log-pilot2-kafka.yaml #后端输出到kafka

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: log-pilot2-configuration
  #namespace: ns-elastic
data:
  logging_output: "kafka"
  kafka_brokers: "10.0.1.204:9092"
  kafka_version: "0.10.0"
  # configure all valid topics in kafka
  # when disable auto-create topic
  kafka_topics: "tomcat-syslog,tomcat-access"
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: log-pilot2
  #namespace: ns-elastic
  labels:
    k8s-app: log-pilot2
spec:
  selector:
    matchLabels:
      k8s-app: log-pilot2
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        k8s-app: log-pilot2
    spec:
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule
      containers:
      - name: log-pilot2
#
#        wget https://github.com/AliyunContainerService/log-pilot/archive/v0.9.7.zip
#        unzip log-pilot-0.9.7.zip
#        vim ./log-pilot-0.9.7/assets/filebeat/config.filebeat
#        ...
#        output.kafka:
#            hosts: [$KAFKA_BROKERS]
#            topic: '%{[topic]}'
#            codec.format:
#                string: '%{[message]}'
#        ...
        image: registry.cn-hangzhou.aliyuncs.com/acs/log-pilot:0.9.7-filebeat
        env:
          - name: "LOGGING_OUTPUT"
            valueFrom:
              configMapKeyRef:
                name: log-pilot2-configuration
                key: logging_output
          - name: "KAFKA_BROKERS"
            valueFrom:
              configMapKeyRef:
                name: log-pilot2-configuration
                key: kafka_brokers
          - name: "KAFKA_VERSION"
            valueFrom:
              configMapKeyRef:
                name: log-pilot2-configuration
                key: kafka_version
          - name: "NODE_NAME"
            valueFrom:
              fieldRef:
                fieldPath: spec.nodeName
        volumeMounts:
        - name: sock
          mountPath: /var/run/docker.sock
        - name: logs
          mountPath: /var/log/filebeat
        - name: state
          mountPath: /var/lib/filebeat
        - name: root
          mountPath: /host
          readOnly: true
        - name: localtime
          mountPath: /etc/localtime
        # configure all valid topics in kafka
        # when disable auto-create topic
        - name: config-volume
          mountPath: /etc/filebeat/config
        securityContext:
          capabilities:
            add:
            - SYS_ADMIN
      terminationGracePeriodSeconds: 30
      volumes:
      - name: sock
        hostPath:
          path: /var/run/docker.sock
          type: Socket
      - name: logs
        hostPath:
          path: /var/log/filebeat
          type: DirectoryOrCreate
      - name: state
        hostPath:
          path: /var/lib/filebeat
          type: DirectoryOrCreate
      - name: root
        hostPath:
          path: /
          type: Directory
      - name: localtime
        hostPath:
          path: /etc/localtime
          type: File
      # kubelet sync period
      - name: config-volume
        configMap:
          name: log-pilot2-configuration
          items:
          - key: kafka_topics
            path: kafka_topics

准备一个测试用的kafka服务

# 部署前准备
# 0. 先把代码pull到本地
# https://github.com/wurstmeister/kafka-docker
# 修改docker-compose.yml为:
#------------------------------------
version: '2'
services:
  zookeeper:
    image: wurstmeister/zookeeper
    ports:
      - "2181:2181"
  kafka:
    #build: .
    image: wurstmeister/kafka
    ports:
      - "9092:9092"
    environment:
      KAFKA_ADVERTISED_HOST_NAME: 10.0.1.204  # docker运行的机器IP
      KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - /nfs_storageclass/kafka:/kafka
#------------------------------------

# 1. docker-compose setup:
# docker-compose up -d
Recreating kafka-docker-compose_kafka_1   ... done
Starting kafka-docker-compose_zookeeper_1 ... done

# 2. result look:
# docker-compose ps
              Name                            Command               State                    Ports
--------------------------------------------------------------------------------------------------------------------
kafka-docker-compose_kafka_1       start-kafka.sh                   Up      0.0.0.0:9092->9092/tcp
kafka-docker-compose_zookeeper_1   /bin/sh -c /usr/sbin/sshd  ...   Up      0.0.0.0:2181->2181/tcp, 22/tcp,
                                                                            2888/tcp, 3888/tcp
# 3. run test-docker
bash-4.4# docker run --rm -v /var/run/docker.sock:/var/run/docker.sock -e HOST_IP=10.0.1.204 -e ZK=10.0.1.204:2181 -i -t wurstmeister/kafka /bin/bash

# 4. list topic
bash-4.4# kafka-topics.sh --zookeeper 10.0.1.204:2181 --list
tomcat-access
tomcat-syslog

# 5. consumer topic data:
bash-4.4# kafka-console-consumer.sh --bootstrap-server 10.0.1.204:9092 --topic tomcat-access --from-beginning

先创建一个测试用的命名空间:

# kubectl create ns testlog

收集日志到elasticserach

部署es 和 kibana:

# kubectl -n testlog apply -f elasticsearch.6.8.13-statefulset.yaml
# kubectl -n testlog apply -f kibana.6.8.13.yaml

部署log-pilot

# kubectl -n testlog apply -f log-pilot.yml

部署tomcat

# kubectl -n testlog apply -f tomcat-test.yaml

然后通过kibana域名kibana.boge.com来创建索引,查看日志是否已经被收集到es了。

收集日志到Kafka

# 先清除上面的配置
# kubectl -n testlog delete -f elasticsearch.6.8.13-statefulset.yaml
# kubectl -n testlog delete -f kibana.6.8.13.yaml
# kubectl -n testlog delete -f log-pilot.yml
# kubectl -n testlog delete -f tomcat-test.yaml

# 然后部署新配置的log-pilot以及测试kafka
# kubectl -n testlog apply -f log-pilot2-kafka.yaml
# 注意修改里面的configmap配置

apiVersion: v1
kind: ConfigMap
metadata:
  name: log-pilot2-configuration
data:
  logging_output: "kafka"            # 指定输出到kafka服务
  kafka_brokers: "10.0.1.204:9092"   # kafka地址
  kafka_version: "0.10.0"            # 指定版本,生产中实测kafka_2.12-2.5.0及以下,这里都配置为"0.10.0" 就可以了
  # configure all valid topics in kafka
  # when disable auto-create topic
  kafka_topics: "tomcat-syslog,tomcat-access"  # 注意这里要把需要收集的服务topic给加到白名单这里,否则不给收集,而且同个服务里面都要加,否则都不会被收集

# kafka的部署配置上面已经贴出

# 重新部署下tomcat
# kubectl -n testlog delete -f tomcat-test.yaml

# 然后在kafka里面只要能列出相应topic并能对其进行消费就证明日志收集没问题了
tomcat-access
tomcat-syslog

在实际生产环境中,我们的业务日志可能会非常多,这时候建议收集时直接先缓存到KAFKA,然后根据后面我们的实际需求来消费KAFKA里面的日志数据,转存到其他地方,这里接上面继续,我以一个logstash来收集KAFKA里面的日志数据到最新版本的elasticsearch里面(正好也解决了log-pilot不支持elasticsearch7以上版本的问题)

完整的日志收集架构链路如下:

log-pilot ---> kafka ---> logstash ---> elasticsearch7 ---> kibana7

开始部署新版本的es集群(开启了X-Pack安全配置):

注:这里为了节省资源,可以把上面创建的6版本的es和kibana给清理掉

# 部署es集群
kubectl apply -f namespace.yaml
kubectl apply -f es-master-configmap.yaml -f es-master-service.yaml -f es-master-deployment.yaml
kubectl apply -f es-data-configmap.yaml -f es-data-service.yaml -f es-data-statefulset.yaml
kubectl apply -f es-client-configmap.yaml -f es-client-service.yaml -f es-client-deployment.yaml

# 查看es是否正常运行
kubectl logs -f -n logging $(kubectl get pods -n logging | grep elasticsearch-master | sed -n 1p | awk '{print $1}')\
| grep "Cluster health status changed from \[YELLOW\] to \[GREEN\]"

# 查看生成的es相关帐号密码(这里只用到了帐号elastic)
# kubectl exec -it $(kubectl get pods -n logging | grep elasticsearch-client | sed -n 1p | awk '{print $1}') -n logging -- bin/elasticsearch-setup-passwords auto -b
Changed password for user apm_system
PASSWORD apm_system = py0fZjuCP2Ky3ysc3TW6

Changed password for user kibana_system
PASSWORD kibana_system = ltgJNL8dw1nF34WLw9cQ

Changed password for user kibana
PASSWORD kibana = ltgJNL8dw1nF34WLw9cQ

Changed password for user logstash_system
PASSWORD logstash_system = biALFG4UYoc8h4TSxAJC

Changed password for user beats_system
PASSWORD beats_system = E5TdQ8LI33mTQRrJlD3r

Changed password for user remote_monitoring_user
PASSWORD remote_monitoring_user = GtlT45XgtVvT5KpAp791

Changed password for user elastic
PASSWORD elastic = cR5SFjHajVOoGZPzfiEQ

# 创建elastic帐号的密码secret
kubectl create secret generic elasticsearch-pw-elastic -n logging --from-literal password=cR5SFjHajVOoGZPzfiEQ

# 创建kibana
kubectl apply  -f kibana-configmap.yaml -f kibana-service.yaml -f kibana-deployment.yaml

相关yaml配置如下:

namespace.yaml

kind: Namespace
apiVersion: v1
metadata:
  name: logging

es-client-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  namespace: logging
  name: elasticsearch-client-config
  labels:
    app: elasticsearch
    role: client
data:
  elasticsearch.yml: |-
    cluster.name: ${CLUSTER_NAME}
    node.name: ${NODE_NAME}
    discovery.seed_hosts: ${NODE_LIST}
    cluster.initial_master_nodes: ${MASTER_NODES}
    network.host: 0.0.0.0
    node:
      master: false
      data: false
      ingest: true
    xpack.security.enabled: true
    xpack.monitoring.collection.enabled: true

es-client-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: logging
  name: elasticsearch-client
  labels:
    app: elasticsearch
    role: client
spec:
  replicas: 1
  selector:
    matchLabels:
      app: elasticsearch
      role: client
  template:
    metadata:
      labels:
        app: elasticsearch
        role: client
    spec:
      containers:
      - name: elasticsearch-client
        image: elastic/elasticsearch:7.10.1
        env:
        - name: CLUSTER_NAME
          value: elasticsearch
        - name: NODE_NAME
          value: elasticsearch-client
        - name: NODE_LIST
          value: elasticsearch-master,elasticsearch-data,elasticsearch-client
        - name: MASTER_NODES
          value: elasticsearch-master
        - name: "ES_JAVA_OPTS"
          value: "-Xms256m -Xmx256m"
        ports:
        - containerPort: 9200
          name: client
        - containerPort: 9300
          name: transport
        volumeMounts:
        - name: config
          mountPath: /usr/share/elasticsearch/config/elasticsearch.yml
          readOnly: true
          subPath: elasticsearch.yml
        - name: storage
          mountPath: /data
      volumes:
      - name: config
        configMap:
          name: elasticsearch-client-config
      - name: "storage"
        emptyDir:
          medium: ""
      initContainers:
      - name: increase-vm-max-map
        image: busybox
        command: ["sysctl", "-w", "vm.max_map_count=262144"]
        securityContext:
          privileged: true

es-client-service.yaml

apiVersion: v1
kind: Service
metadata:
  namespace: logging
  name: elasticsearch-client
  labels:
    app: elasticsearch
    role: client
spec:
  ports:
  - port: 9200
    name: client
  - port: 9300
    name: transport
  selector:
    app: elasticsearch
    role: client

es-data-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  namespace: logging
  name: elasticsearch-data-config
  labels:
    app: elasticsearch
    role: data
data:
  elasticsearch.yml: |-
    cluster.name: ${CLUSTER_NAME}
    node.name: ${NODE_NAME}
    discovery.seed_hosts: ${NODE_LIST}
    cluster.initial_master_nodes: ${MASTER_NODES}
    network.host: 0.0.0.0
    node:
      master: false
      data: true
      ingest: false
    xpack.security.enabled: true
    xpack.monitoring.collection.enabled: true

es-data-service.yaml

apiVersion: v1
kind: Service
metadata:
  namespace: logging
  name: elasticsearch-data
  labels:
    app: elasticsearch
    role: data
spec:
  ports:
  - port: 9300
    name: transport
  selector:
    app: elasticsearch
    role: data

es-data-statefulset.yaml

apiVersion: apps/v1
kind: StatefulSet
metadata:
  namespace: logging
  name: elasticsearch-data
  labels:
    app: elasticsearch
    role: data
spec:
  serviceName: "elasticsearch-data"
  replicas: 1
  selector:
    matchLabels:
      app: elasticsearch-data
  template:
    metadata:
      labels:
        app: elasticsearch-data
        role: data
    spec:
      containers:
      - name: elasticsearch-data
        image: elastic/elasticsearch:7.10.1
        env:
        - name: CLUSTER_NAME
          value: elasticsearch
        - name: NODE_NAME
          value: elasticsearch-data
        - name: NODE_LIST
          value: elasticsearch-master,elasticsearch-data,elasticsearch-client
        - name: MASTER_NODES
          value: elasticsearch-master
        - name: "ES_JAVA_OPTS"
          value: "-Xms300m -Xmx300m"
        ports:
        - containerPort: 9300
          name: transport
        volumeMounts:
        - name: config
          mountPath: /usr/share/elasticsearch/config/elasticsearch.yml
          readOnly: true
          subPath: elasticsearch.yml
        - name: elasticsearch-data-persistent-storage
          mountPath: /data/db
      volumes:
      - name: config
        configMap:
          name: elasticsearch-data-config
      initContainers:
      - name: increase-vm-max-map
        image: busybox
        command: ["sysctl", "-w", "vm.max_map_count=262144"]
        securityContext:
          privileged: true
  volumeClaimTemplates:
  - metadata:
      name: elasticsearch-data-persistent-storage
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "nfs-boge"
      resources:
        requests:
          storage: 2Gi

es-master-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  namespace: logging
  name: elasticsearch-master-config
  labels:
    app: elasticsearch
    role: master
data:
  elasticsearch.yml: |-
    cluster.name: ${CLUSTER_NAME}
    node.name: ${NODE_NAME}
    discovery.seed_hosts: ${NODE_LIST}
    cluster.initial_master_nodes: ${MASTER_NODES}
    network.host: 0.0.0.0
    node:
      master: true
      data: false
      ingest: false
    xpack.security.enabled: true
    xpack.monitoring.collection.enabled: true

es-master-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: logging
  name: elasticsearch-master
  labels:
    app: elasticsearch
    role: master
spec:
  replicas: 1
  selector:
    matchLabels:
      app: elasticsearch
      role: master
  template:
    metadata:
      labels:
        app: elasticsearch
        role: master
    spec:
      containers:
      - name: elasticsearch-master
        image: elastic/elasticsearch:7.10.1
        env:
        - name: CLUSTER_NAME
          value: elasticsearch
        - name: NODE_NAME
          value: elasticsearch-master
        - name: NODE_LIST
          value: elasticsearch-master,elasticsearch-data,elasticsearch-client
        - name: MASTER_NODES
          value: elasticsearch-master
        - name: "ES_JAVA_OPTS"
          value: "-Xms256m -Xmx256m"
        ports:
        - containerPort: 9300
          name: transport
        volumeMounts:
        - name: config
          mountPath: /usr/share/elasticsearch/config/elasticsearch.yml
          readOnly: true
          subPath: elasticsearch.yml
        - name: storage
          mountPath: /data
      volumes:
      - name: config
        configMap:
          name: elasticsearch-master-config
      - name: "storage"
        emptyDir:
          medium: ""
      initContainers:
      - name: increase-vm-max-map
        image: busybox
        command: ["sysctl", "-w", "vm.max_map_count=262144"]
        securityContext:
          privileged: true

es-master-service.yaml

apiVersion: v1
kind: Service
metadata:
  namespace: logging
  name: elasticsearch-master
  labels:
    app: elasticsearch
    role: master
spec:
  ports:
  - port: 9300
    name: transport
  selector:
    app: elasticsearch
    role: master

kibana-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  namespace: logging
  name: kibana-config
  labels:
    app: kibana
data:
  kibana.yml: |-
    server.host: 0.0.0.0
    elasticsearch:
      hosts: ${ELASTICSEARCH_URL}
      username: ${ELASTICSEARCH_USER}
      password: ${ELASTICSEARCH_PASSWORD}

kibana-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: logging
  name: kibana
  labels:
    app: kibana
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kibana
  template:
    metadata:
      labels:
        app: kibana
    spec:
      containers:
      - name: kibana
        image: elastic/kibana:7.10.1
        env:
        - name: ELASTICSEARCH_URL
          value: "http://elasticsearch-client:9200"
        - name: ELASTICSEARCH_USER
          value: "elastic"
        - name: ELASTICSEARCH_PASSWORD
          valueFrom:
            secretKeyRee:
              name: elasticsearch-pw-elastic
              key: password
        resources:
          limits:
            cpu: 2
            memory: 1.5Gi
          requests:
            cpu: 0.5
            memory: 1Gi
        ports:
        - containerPort: 5601
          name: kibana
          protocol: TCP
        volumeMounts:
        - name: config
          mountPath: /usr/share/kibana/config/kibana.yml
          readOnly: true
          subPath: kibana.yml
      volumes:
      - name: config
        configMap:
          name: kibana-config

kibana-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: kibana
  namespace: logging
  labels:
    component: kibana
spec:
  selector:
    app: kibana
  ports:
  - name: http
    port: 5601
    protocol: TCP
  type: NodePort

logstash.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  namespace: logging
  name: logstash-configmap
data:
  logstash.yml: |
    http.host: "0.0.0.0"
    path.config: /usr/share/logstash/pipeline
  logstash.cone: |
    # all input will come from filebeat, no local logs
    input {
      kafka {
        bootstrap_servers => ["10.0.0.221:9092"]
        # bin/kafka-consumer-groups.sh --list --bootstrap-server localhost:9092
        topics_pattern  => "tomcat-.*"
        consumer_threads => 5
        decorate_events => true
        codec => json
        auto_offset_reset => "latest"
        group_id => "boge"
      }
    }
    filter {
    }
    output {
      elasticsearch {
        index => "%{[@metadata][kafka][topic]}-%{+YYYY-MM-dd}"
        hosts => [ "${ELASTICSEARCH_URL}" ]
        user => "${ELASTICSEARCH_USER}"
        password => "${ELASTICSEARCH_PASSWORD}"
        #cacert => '/etc/logstash/certificates/ca.crt'
      }
      stdout {
        codec => rubydebug
      }
    }

---
#apiVersion: v1
#kind: Service
#metadata:
#  labels:
#    app: logstash
#  name: logstash
#spec:
#  ports:
#  - name: "5044"
#    port: 5044
#    targetPort: 5044
#  selector:
#    app: logstash

---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: logging
  name: logstash
spec:
  replicas: 1
  selector:
    matchLabels:
      app: logstash
  template:
    metadata:
      labels:
        app: logstash
    spec:
      containers:
      - name: logstash
        image: elastic/logstash:7.10.1
        ports:
        - containerPort: 5044
          name: logstash
        env:
        - name: ELASTICSEARCH_URL
          value: "http://elasticsearch-client:9200"
        - name: ELASTICSEARCH_USER
          value: "elastic"
        - name: ELASTICSEARCH_PASSWORD
          valueFrom:
            secretKeyRee:
              name: elasticsearch-pw-elastic
              key: password
        volumeMounts:
        - name: config-volume
          mountPath: /usr/share/logstash/config
        - name: logstash-pipeline-volume
          mountPath: /usr/share/logstash/pipeline/
        - name: localtime
          mountPath: /etc/localtime
    #    - name: cert-ca
    #      mountPath: "/etc/logstash/certificates"
    #      readOnly: true
        command:
        - logstash
      volumes:
      - name: config-volume
        configMap:
          name: logstash-configmap
          items:
            - key: logstash.yml
              path: logstash.yml
      - name: logstash-pipeline-volume
        configMap:
          name: logstash-configmap
          items:
            - key: logstash.conf
              path: logstash.conf
      - name: localtime
        hostPath:
          path: /etc/localtime
          type: File

#      - name: cert-ca
#        secret:
#          secretName: elasticsearch-es-http-certs-public

视频
https://www.ixigua.com/6943572202990240270

标签: k8s日志

添加新评论
