第6关 k8s架构师课程之流量入口Ingress上部

Ingress是允许入站连接到达集群服务的一组规则。即介于物理网络和群集svc之间的一组转发规则。
其实就是实现L4 L7的负载均衡:
注意:这里的Ingress并非将外部流量通过Service来转发到服务pod上,而只是通过Service来找到对应的Endpoint来发现pod进行转发

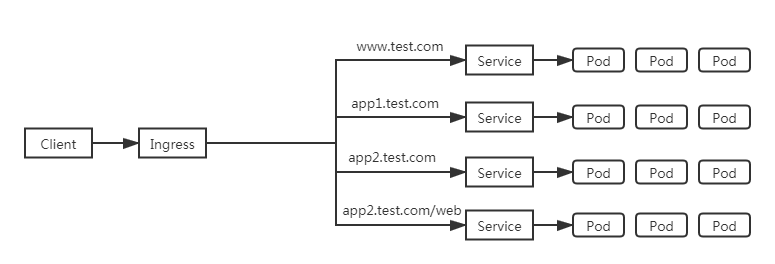

    internet
        |
   [ Ingress ]   ---> [ Services ] ---> [ Endpoint ]
   --|-----|--                                 |
   [ Pod,pod,...... ]<-------------------------|

要在K8s上面使用Ingress,我们就需要在K8s上部署Ingress-controller控制器,只有它在K8s集群中运行,Ingress依次才能正常工作。Ingress-controller控制器有很多种,比如traefik,但我们这里要用到ingress-nginx这个控制器,它的底层就是用Openresty融合nginx和一些lua规则等实现的。

重点来了,我在讲课中一直强调,本课程带给大家的都是基于生产中实战经验,所以这里我们用的ingress-nginx不是普通的社区版本,而是经过了超大生产流量检验,国内最大的云平台阿里云基于社区版分支出来,进行了魔改而成,更符合生产,基本属于开箱即用,下面是aliyun-ingress-controller的介绍:

下面介绍只截取了最新的一部分,更多文档资源可以查阅官档:
https://developer.aliyun.com/article/598075

服务简介
在Kubernetes集群中,Ingress是授权入站连接到达集群服务的规则集合,为您提供七层负载均衡能力,您可以通过 Ingress 配置提供外部可访问的 URL、负载均衡、SSL、基于名称的虚拟主机,阿里云容器服务K8S Ingress Controller在完全兼容社区版本的基础上提供了更多的特性和优化。

版本说明
v0.30.0.2-9597b3685-aliyun:
新增FastCGI Backend支持
默认启用Dynamic SSL Cert Update模式
新增流量Mirror配置支持
升级NGINX版本到1.17.8,OpenResty版本到1.15.8,更新基础镜像为Alpine
新增Ingress Validating Webhook支持
修复CVE-2018-16843、CVE-2018-16844、CVE-2019-9511、CVE-2019-9513和CVE-2019-9516漏洞
[Breaking Change] lua-resty-waf、session-cookie-hash、force-namespace-isolation等配置被废弃;x-forwarded-prefix类型从boolean转成string类型;log-format配置中的the_real_ip变量下个版本将被废弃,统一采用remote_addr替代
同步更新到社区0.30.0版本,更多详细变更记录参考社区Changelog

aliyun-ingress-controller有一个很重要的修改,就是它支持路由配置的动态更新,大家用过Nginx的可以知道,在修改完Nginx的配置,我们是需要进行nginx -s reload来重加载配置才能生效的,在K8s上,这个行为也是一样的,但由于K8s运行的服务会非常多,所以它的配置更新是非常频繁的,因此,如果不支持配置动态更新,对于在高频率变化的场景下,Nginx频繁Reload会带来较明显的请求访问问题:

  1. 造成一定的QPS抖动和访问失败情况
  2. 对于长连接服务会被频繁断掉
  3. 造成大量的处于shutting down的Nginx Worker进程,进而引起内存膨胀

详细原理分析见这篇文章: https://developer.aliyun.com/article/692732

我们准备来部署aliyun-ingress-controller,下面直接是生产中在用的yaml配置,我们保存了aliyun-ingress-nginx.yaml准备开始部署:

详细讲解下面yaml配置的每个部分

apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
  labels:
    app: ingress-nginx

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-ingress-controller
  namespace: ingress-nginx
  labels:
    app: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: nginx-ingress-controller
  labels:
    app: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
      - namespaces
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - "extensions"
      - "networking.k8s.io"
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - "extensions"
      - "networking.k8s.io"
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - ""
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ""
    resources:
      - configmaps
    resourceNames:
      - "ingress-controller-leader-nginx"
    verbs:
      - get
      - update

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: nginx-ingress-controller
  labels:
    app: ingress-nginx
roleRee:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: nginx-ingress-controller
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-controller
    namespace: ingress-nginx

---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: ingress-nginx
  name: nginx-ingress-lb
  namespace: ingress-nginx
spec:
  # DaemonSet need:
  # ----------------
  type: ClusterIP
  # ----------------
  # Deployment need:
  # ----------------
#  type: NodePort
  # ----------------
  ports:
  - name: http
    port: 80
    targetPort: 80
    protocol: TCP
  - name: https
    port: 443
    targetPort: 443
    protocol: TCP
  - name: metrics
    port: 10254
    protocol: TCP
    targetPort: 10254
  selector:
    app: ingress-nginx

---
kind: ConfigMap
apiVersion: v1
metadata:
  name: nginx-configuration
  namespace: ingress-nginx
  labels:
    app: ingress-nginx
data:
  keep-alive: "75"
  keep-alive-requests: "100"
  upstream-keepalive-connections: "10000"
  upstream-keepalive-requests: "100"
  upstream-keepalive-timeout: "60"
  allow-backend-server-header: "true"
  enable-underscores-in-headers: "true"
  generate-request-id: "true"
  http-redirect-code: "301"
  ignore-invalid-headers: "true"
  log-format-upstream: '{"@timestamp": "$time_iso8601","remote_addr": "$remote_addr","x-forward-for": "$proxy_add_x_forwarded_for","request_id": "$req_id","remote_user": "$remote_user","bytes_sent": $bytes_sent,"request_time": $request_time,"status": $status,"vhost": "$host","request_proto": "$server_protocol","path": "$uri","request_query": "$args","request_length": $request_length,"duration": $request_time,"method": "$request_method","http_referrer": "$http_referer","http_user_agent":  "$http_user_agent","upstream-sever":"$proxy_upstream_name","proxy_alternative_upstream_name":"$proxy_alternative_upstream_name","upstream_addr":"$upstream_addr","upstream_response_length":$upstream_response_length,"upstream_response_time":$upstream_response_time,"upstream_status":$upstream_status}'
  max-worker-connections: "65536"
  worker-processes: "2"
  proxy-body-size: 20m
  proxy-connect-timeout: "10"
  proxy_next_upstream: error timeout http_502
  reuse-port: "true"
  server-tokens: "false"
  ssl-ciphers: ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-DSS-AES128-GCM-SHA256:kEDH+AESGCM:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA:ECDHE-ECDSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-DSS-AES128-SHA256:DHE-RSA-AES256-SHA256:DHE-DSS-AES256-SHA:DHE-RSA-AES256-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:AES:CAMELLIA:DES-CBC3-SHA:!aNULL:!eNULL:!EXPORT:!DES:!RC4:!MD5:!PSK:!aECDH:!EDH-DSS-DES-CBC3-SHA:!EDH-RSA-DES-CBC3-SHA:!KRB5-DES-CBC3-SHA
  ssl-protocols: TLSv1 TLSv1.1 TLSv1.2
  ssl-redirect: "false"
  worker-cpu-affinity: auto

---
kind: ConfigMap
apiVersion: v1
metadata:
  name: tcp-services
  namespace: ingress-nginx
  labels:
    app: ingress-nginx

---
kind: ConfigMap
apiVersion: v1
metadata:
  name: udp-services
  namespace: ingress-nginx
  labels:
    app: ingress-nginx

---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: nginx-ingress-controller
  namespace: ingress-nginx
  labels:
    app: ingress-nginx
  annotations:
    component.version: "v0.30.0"
    component.revision: "v1"
spec:
  # Deployment need:
  # ----------------
#  replicas: 1
  # ----------------
  selector:
    matchLabels:
      app: ingress-nginx
  template:
    metadata:
      labels:
        app: ingress-nginx
      annotations:
        prometheus.io/port: "10254"
        prometheus.io/scrape: "true"
        scheduler.alpha.kubernetes.io/critical-pod: ""
    spec:
      # DaemonSet need:
      # ----------------
      hostNetwork: true
      # ----------------
      serviceAccountName: nginx-ingress-controller
      priorityClassName: system-node-critical
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
          - podAffinityTerm:
              labelSelector:
                matchExpressions:
                - key: app
                  operator: In
                  values:
                  - ingress-nginx
              topologyKey: kubernetes.io/hostname
            weight: 100
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: type
                operator: NotIn
                values:
                - virtual-kubelet
      containers:
        - name: nginx-ingress-controller
          image: registry.cn-beijing.aliyuncs.com/acs/aliyun-ingress-controller:v0.30.0.2-9597b3685-aliyun
          args:
            - /nginx-ingress-controller
            - --configmap=$(POD_NAMESPACE)/nginx-configuration
            - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
            - --udp-services-configmap=$(POD_NAMESPACE)/udp-services
            - --publish-service=$(POD_NAMESPACE)/nginx-ingress-lb
            - --annotations-prefix=nginx.ingress.kubernetes.io
            - --enable-dynamic-certificates=true
            - --v=2
          securityContext:
            allowPrivilegeEscalation: true
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            runAsUser: 101
          env:
            - name: POD_NAME
              valueFrom:
                fieldRee:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRee:
                  fieldPath: metadata.namespace
          ports:
            - name: http
              containerPort: 80
            - name: https
              containerPort: 443
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 10
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 10
#          resources:
#            limits:
#              cpu: "1"
#              memory: 2Gi
#            requests:
#              cpu: "1"
#              memory: 2Gi
          volumeMounts:
          - mountPath: /etc/localtime
            name: localtime
            readOnly: true
      volumes:
      - name: localtime
        hostPath:
          path: /etc/localtime
          type: File
      nodeSelector:
        boge/ingress-controller-ready: "true"
      tolerations:
      - operator: Exists

      initContainers:
      - command:
        - /bin/sh
        - -c
        - |
          mount -o remount rw /proc/sys
          sysctl -w net.core.somaxconn=65535
          sysctl -w net.ipv4.ip_local_port_range="1024 65535"
          sysctl -w fs.file-max=1048576
          sysctl -w fs.inotify.max_user_instances=16384
          sysctl -w fs.inotify.max_user_watches=524288
          sysctl -w fs.inotify.max_queued_events=16384
        image: registry.cn-beijing.aliyuncs.com/acs/busybox:v1.29.2
        imagePullPolicy: Always
        name: init-sysctl
        securityContext:
          privileged: true
          procMount: Default

---
## Deployment need for aliyun'k8s:
#apiVersion: v1
#kind: Service
#metadata:
#  annotations:
#    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-id: "lb-xxxxxxxxxxxxxxxxxxx"
#    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-force-override-listeners: "true"
#  labels:
#    app: nginx-ingress-lb
#  name: nginx-ingress-lb-local
#  namespace: ingress-nginx
#spec:
#  externalTrafficPolicy: Local
#  ports:
#  - name: http
#    port: 80
#    protocol: TCP
#    targetPort: 80
#  - name: https
#    port: 443
#    protocol: TCP
#    targetPort: 443
#  selector:
#    app: ingress-nginx
#  type: LoadBalancer

DaemonSet

开始部署:

# kubectl  apply -f aliyun-ingress-nginx.yaml
namespace/ingress-nginx created
serviceaccount/nginx-ingress-controller created
clusterrole.rbac.authorization.k8s.io/nginx-ingress-controller created
clusterrolebinding.rbac.authorization.k8s.io/nginx-ingress-controller created
service/nginx-ingress-lb created
configmap/nginx-configuration created
configmap/tcp-services created
configmap/udp-services created
daemonset.apps/nginx-ingress-controller created

# 这里是以daemonset资源的形式进行的安装
# DaemonSet资源和Deployment的yaml配置类似,但不同的是Deployment可以在每个node上运行多个pod副本,但daemonset在每个node上只能运行一个pod副本
# 这里正好就借运行ingress-nginx的情况下,把daemonset这个资源做下讲解

# 我们查看下pod,会发现空空如也,为什么会这样呢?
# kubectl -n ingress-nginx get pod
注意上面的yaml配置里面,我使用了节点选择配置,只有打了我指定lable标签的node节点,也会被允许调度pod上去运行
      nodeSelector:
        boge/ingress-controller-ready: "true"

# 我们现在来打标签
# kubectl label node 10.0.1.201 boge/ingress-controller-ready=true
node/10.0.1.201 labeled
# kubectl label node 10.0.1.202 boge/ingress-controller-ready=true
node/10.0.1.202 labeled

# 接着可以看到pod就被调试到这两台node上启动了
# kubectl -n ingress-nginx get pod -o wide
NAME                             READY   STATUS    RESTARTS   AGE    IP           NODE         NOMINATED NODE   READINESS GATES
nginx-ingress-controller-lchgr   1/1     Running   0          9m1s   10.0.1.202   10.0.1.202   <none>           <none>
nginx-ingress-controller-x87rp   1/1     Running   0          9m6s   10.0.1.201   10.0.1.201   <none>           <none>

我们基于前面学到的deployment和service,来创建一个nginx的相应服务资源,保存为nginx.yaml:

注意:记得把前面测试的资源删除掉,以防冲突

apiVersion: v1
kind: Service
metadata:
  labels:
    app: nginx
  name: nginx
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: nginx

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx
  name: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - image: nginx
        name: nginx

运行它:

# kubectl apply -f nginx.yaml
service/nginx created
deployment.apps/nginx created

然后准备nginx的ingress配置,保留为nginx-ingress.yaml,并执行它:

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginx-ingress
spec:
  rules:
    - host: nginx.boge.com
      http:
        paths:
          - backend:
              serviceName: nginx
              servicePort: 80
            path: /
# kubectl apply -f nginx-ingress.yaml
ingress.extensions/nginx-ingress created

#查看创建的ingress资源
# kubectl get ingress
NAME            CLASS    HOSTS            ADDRESS   PORTS   AGE
nginx-ingress   <none>   nginx.boge.com             80      13s

# 我们在其它节点上,加下本地hosts,来测试下效果
10.0.1.201 nginx.boge.com

# 可以看到请求成功了

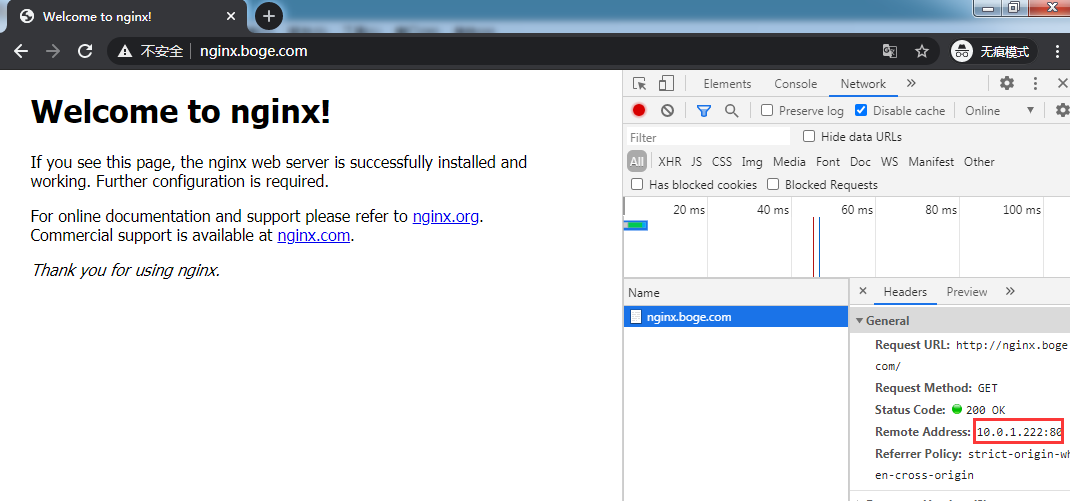

[root@node-2 ~]# curl nginx.boge.com
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

# 回到201节点上,看下ingress-nginx的日志
[root@node-1 ~]# kubectl -n ingress-nginx logs --tail=1 nginx-ingress-controller-x87rp
{"@timestamp": "2020-11-26T18:16:53+08:00","remote_addr": "10.0.1.202","x-forward-for": "10.0.1.202","request_id": "74440b6d92aca4d64600ffa85c1dee15","remote_user": "-","bytes_sent": 851,"request_time": 0.004,"status": 200,"vhost": "nginx.boge.com","request_proto": "HTTP/1.1","path": "/","request_query": "-","request_length": 78,"duration": 0.004,"method": "GET","http_referrer": "-","http_user_agent":  "curl/7.29.0","upstream-sever":"default-nginx-80","proxy_alternative_upstream_name":"","upstream_addr":"172.20.217.65:80","upstream_response_length":612,"upstream_response_time":0.003,"upstream_status":200}

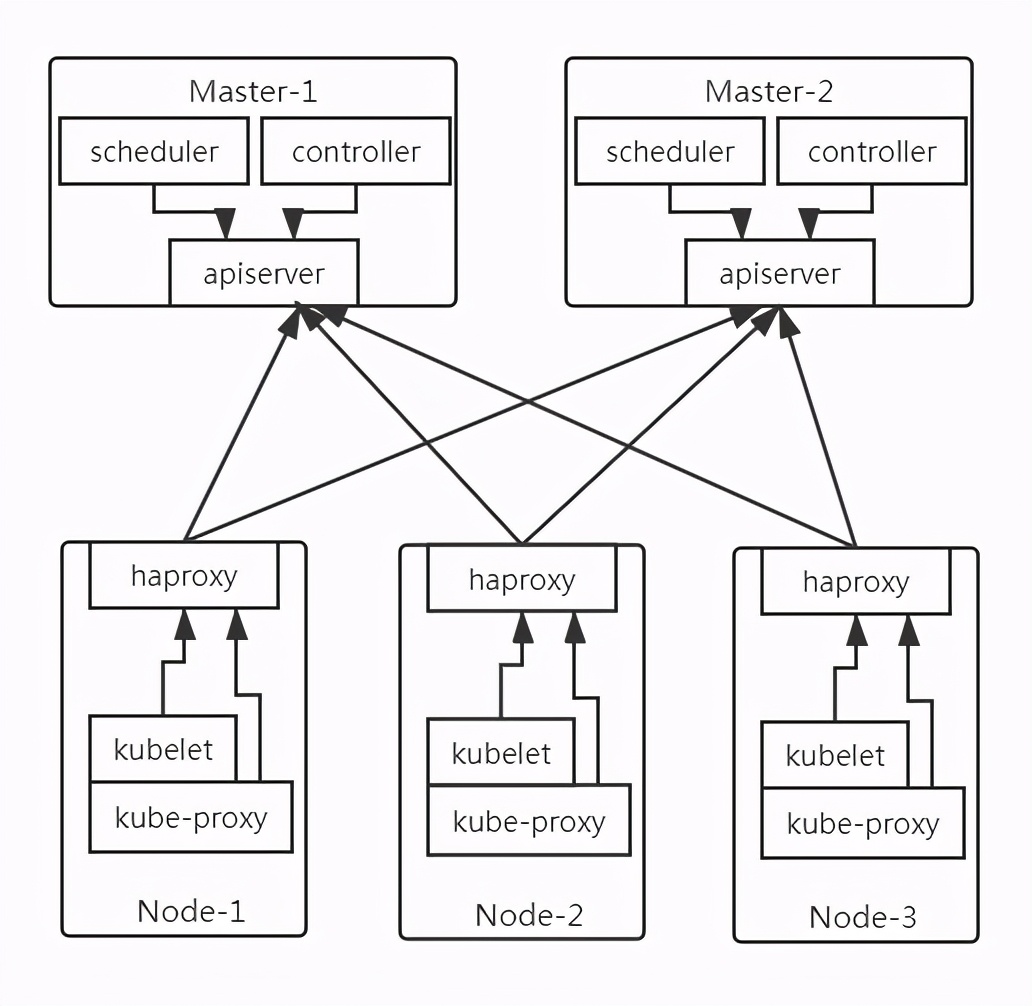

在生产环境中,如果是自建机房,我们通常会在至少2台node节点上运行有ingress-nginx的pod,那么有必要在这两台node上面部署负载均衡软件做调度,来起到高可用的作用,这里我们用haproxy+keepalived,如果你的生产环境是在云上,假设是阿里云,那么你只需要购买一个负载均衡器SLB,将运行有ingress-nginx的pod的节点服务器加到这个SLB的后端来,然后将请求域名和这个SLB的公网IP做好解析即可,目前我们用二进制部署的K8s集群通信架构如下:

第6关 k8s架构师课程之流量入口Ingress上部

注意在每台node节点上有已经部署有了个haproxy软件,来转发apiserver的请求的,那么,我们只需要选取两台节点,部署keepalived软件并重新配置haproxy,来生成VIP达到ha的效果,这里我们选择在其中两台node节点(10.0.1.202、203)上部署

node上现在已有的haproxy配置:

# cat /etc/haproxy/haproxy.cfg
global
        log /dev/log    local1 warning
        chroot /var/lib/haproxy
        user haproxy
        group haproxy
        daemon
        nbproc 1

defaults
        log     global
        timeout connect 5s
        timeout client  10m
        timeout server  10m

listen kube-master
        bind 127.0.0.1:6443
        mode tcp
        option tcplog
        option dontlognull
        option dontlog-normal
        balance roundrobin
        server 10.0.1.201 10.0.1.201:6443 check inter 10s fall 2 rise 2 weight 1
        server 10.0.1.202 10.0.1.202:6443 check inter 10s fall 2 rise 2 weight 1

开始新增ingress端口的转发,修改haproxy配置如下(注意两台节点都记得修改):

# cat /etc/haproxy/haproxy.cfg
global
        log /dev/log    local1 warning
        chroot /var/lib/haproxy
        user haproxy
        group haproxy
        daemon
        nbproc 1

defaults
        log     global
        timeout connect 5s
        timeout client  10m
        timeout server  10m

listen kube-master
        bind 127.0.0.1:6443
        mode tcp
        option tcplog
        option dontlognull
        option dontlog-normal
        balance roundrobin
        server 10.0.1.201 10.0.1.201:6443 check inter 10s fall 2 rise 2 weight 1
        server 10.0.1.202 10.0.1.202:6443 check inter 10s fall 2 rise 2 weight 1

listen ingress-http
        bind 0.0.0.0:80
        mode tcp
        option tcplog
        option dontlognull
        option dontlog-normal
        balance roundrobin
        server 10.0.1.201 10.0.1.201:80 check inter 2000 fall 2 rise 2 weight 1
        server 10.0.1.202 10.0.1.202:80 check inter 2000 fall 2 rise 2 weight 1

listen ingress-https
        bind 0.0.0.0:443
        mode tcp
        option tcplog
        option dontlognull
        option dontlog-normal
        balance roundrobin
        server 10.0.1.201 10.0.1.201:443 check inter 2000 fall 2 rise 2 weight 1
        server 10.0.1.202 10.0.1.202:443 check inter 2000 fall 2 rise 2 weight 1

然后在两台node上分别安装keepalived并进行配置:

# 安装keepalived
yum install -y keepalived

# 编辑配置修改为如下:
# 这里是node 10.0.1.203
global_defs {
    router_id lb-master
}

vrrp_script check-haproxy {
    script "killall -0 haproxy"
    interval 5
    weight -60
}

vrrp_instance VI-kube-master {
    state MASTER
    priority 120
    unicast_src_ip 10.0.1.203
    unicast_peer {
        10.0.1.204
    }
    dont_track_primary
    interface ens32  # 注意这里的网卡名称修改成你机器真实的内网网卡名称,可用命令ip addr查看
    virtual_router_id 111
    advert_int 3
    track_script {
        check-haproxy
    }
    virtual_ipaddress {
        10.0.1.222
    }
}

# 这里是node 10.0.1.204
global_defs {
    router_id lb-master
}

vrrp_script check-haproxy {
    script "killall -0 haproxy"
    interval 5
    weight -60
}

vrrp_instance VI-kube-master {
    state MASTER
    priority 120
    unicast_src_ip 10.0.1.204
    unicast_peer {
        10.0.1.203
    }
    dont_track_primary
    interface ens32
    virtual_router_id 111
    advert_int 3
    track_script {
        check-haproxy
    }
    virtual_ipaddress {
        10.0.1.222
    }
}

全部安装配置完成后,在两台node上重启服务:

# 重启服务
systemctl restart haproxy.service
systemctl restart keepalived.service

# 查看运行状态
systemctl status haproxy.service
systemctl status keepalived.service

# 添加开机自启动(haproxy默认安装好就添加了自启动)
systemctl enable keepalived.service
# 查看是否添加成功
systemctl is-enabled keepalived.service
enabled就代表添加成功了

# 同时我可查看下VIP是否已经生成
[root@node-4 ~]# ip a|grep 222
    inet 10.0.1.222/32 scope global ens32

现在我们找一台带图形桌面的机器,绑定下hosts,来试试ingress吧

# 添加一条hosts
10.0.1.222 nginx.boge.com

打开浏览器,输入域名回车测试下:

第6关 k8s架构师课程之流量入口Ingress上部

做到这里,是不是有点成就感了呢,在已经知道了ingress能给我们带来什么后,我们回过头来理解Ingress的工作原理,这样掌握ingress会更加稳固,这也是我平时学习的方法

如下图,Client客户端对nginx.boge.com进行DNS查询,DNS服务器(我们这里是配的本地hosts)返回了Ingress控制器的IP(也就是我们的VIP:10.0.1.222)。然后Client客户端向Ingress控制器发送HTTP请求,并在请求Host头中指定nginx.boge.com。Ingress控制器从该头部确定Client客户端是想访问哪个服务,通过与该服务并联的Endpoint对象查看具体的Pod IP,并将Client客户端的请求转发给其中一个pod。

第6关 k8s架构师课程之流量入口Ingress上部

生产环境正常情况下大部分是一个Ingress对应一个Service服务,但在一些特殊情况,需要复用一个Ingress来访问多个服务的,下面我们来实践下

再创建一个nginx的deployment和service,注意名称修改下不要冲突了

# kubectl create deployment web --image=nginx
deployment.apps/web created

# kubectl expose deployment web --port=80 --target-port=80
service/web exposed

# 确认下创建结果
# kubectl  get deployments.apps
NAME    READY   UP-TO-DATE   AVAILABLE   AGE
nginx   1/1     1            1           16h
web     1/1     1            1           45s
# kubectl  get pod
NAME                    READY   STATUS    RESTARTS   AGE
nginx-f89759699-6vgr8   1/1     Running   1          16h
web-5dcb957ccc-nr2m7    1/1     Running   0          54s
# kubectl  get svc
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.68.0.1       <none>        443/TCP   17h
nginx        ClusterIP   10.68.238.54    <none>        80/TCP    16h
web          ClusterIP   10.68.229.231   <none>        80/TCP    16s

# 接着来修改Ingress
# 注意:这里可以通过两种方式来修改K8s正在运行的资源
# 第一种:直接通过edit修改在线服务的资源来生效,这个通常用在测试环境,在实际生产中不建议这么用
kubectl edit ingress nginx-ingress

# 第二种: 通过之前创建ingress的yaml配置,在上面进行修改,再apply更新进K8s,在生产中是建议这么用的,我们这里也用这种方式来修改
# vim nginx-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /    # 注意这里需要把进来到服务的请求重定向到/,这个和传统的nginx配置是一样的,不配会404
  name: nginx-ingress
spec:
  rules:
    - host: nginx.boge.com
      http:
        paths:
          - backend:
              serviceName: nginx
              servicePort: 80
            path: /nginx  # 注意这里的路由名称要是唯一的
          - backend:       # 从这里开始是新增加的
              serviceName: web
              servicePort: 80
            path: /web  # 注意这里的路由名称要是唯一的
# 开始创建
[root@node-1 ~]# kubectl  apply -f nginx-ingress.yaml
ingress.extensions/nginx-ingress configured

# 同时为了更直观的看到效果,我们按前面讲到的方法来修改下nginx默认的展示页面
# kubectl exec -it nginx-f89759699-6vgr8 -- bash
echo "i am nginx" > /usr/share/nginx/html/index.html

# kubectl exec -it web-5dcb957ccc-nr2m7 -- bash
echo "i am web" > /usr/share/nginx/html/index.html

看下效果吧:

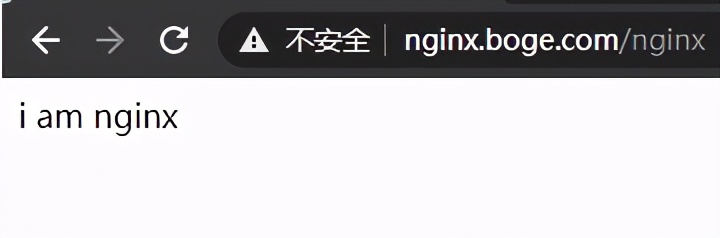

第6关 k8s架构师课程之流量入口Ingress上部

第6关 k8s架构师课程之流量入口Ingress上部

因为http属于是明文传输数据不安全,在生产中我们通常会配置https加密通信,现在实战下Ingress的tls配置

# 这里我先自签一个https的证书

#1. 先生成私钥key
# openssl genrsa -out tls.key 2048
Generating RSA private key, 2048 bit long modulus
..............................................................................................+++
.....+++
e is 65537 (0x10001)

#2.再基于key生成tls证书(注意:这里我用的*.boge.com,这是生成泛域名的证书,后面所有新增加的三级域名都是可以用这个证书的)
# openssl req -new -x509 -key tls.key -out tls.cert -days 360 -subj /CN=*.boge.com

# 看下创建结果
# ll
total 8
-rw-r--r-- 1 root root 1099 Nov 27 11:44 tls.cert
-rw-r--r-- 1 root root 1679 Nov 27 11:43 tls.key

# 在K8s上创建tls的secret(注意默认ns是default)
# kubectl create secret tls mytls --cert=tls.cert --key=tls.key
secret/mytls created

# 然后修改先的ingress的yaml配置
# cat nginx-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /    # 注意这里需要把进来到服务的请求重定向到/,这个和传统的nginx配置是一样的,不配会404
  name: nginx-ingress
spec:
  rules:
    - host: nginx.boge.com
      http:
        paths:
          - backend:
              serviceName: nginx
              servicePort: 80
            path: /nginx  # 注意这里的路由名称要是唯一的
          - backend:       # 从这里开始是新增加的
              serviceName: web
              servicePort: 80
            path: /web  # 注意这里的路由名称要是唯一的
  tls:    # 增加下面这段,注意缩进格式
      - hosts:
          - nginx.boge.com   # 这里域名和上面的对应
        secretName: mytls    # 这是我先生成的secret

# 进行更新
# kubectl  apply -f nginx-ingress.yaml
ingress.extensions/nginx-ingress configured

现在再来看看https访问的效果:

注意:这里因为是我自签的证书,所以浏览器的访问时会提示您的连接不是私密连接 ,我这里用的谷歌浏览器,直接点高级,再点击继续前往nginx.boge.com(不安全)

第6关 k8s架构师课程之流量入口Ingress上部
视频
https://www.ixigua.com/6939125125598052872

标签: k8s, ingress

添加新评论
